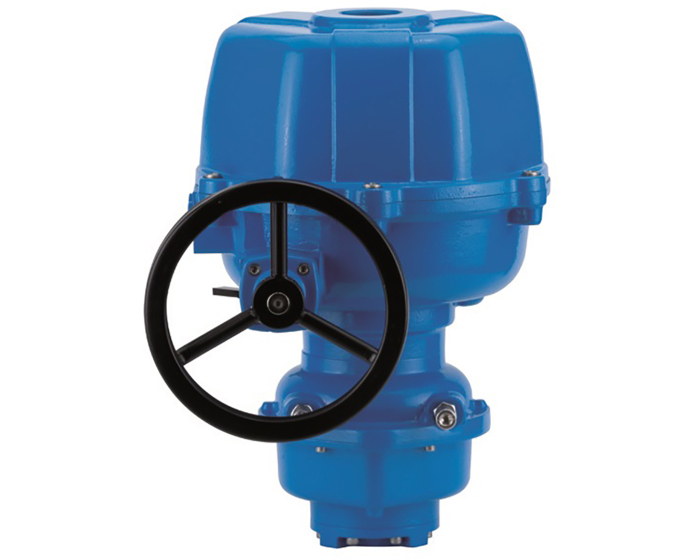

The Electric actuator for 1/4 turn valve with spring return in safety position, from 50 to 300 Nm. Aluminium enclosure and cover with IP67 protection. Service S2- 15 min.
| Specification | Value |
|---|---|
| Square, star (mm) | 14 |
| Manual override | By handwheel |
| Torque (Nm) | 50 |
| Declutchable | Yes |
| Duty service | S4 duty service - 50% |
| Protection index (IP) | IP 67 |
| Torque limiter | No |
| Recommended location | Outdoor |
| ISO pad 5211 | F7 |
| Power (W) | 40 |
| Anti-condensation heater | Standard |
| Positive safety | Yes |
| Function | On-off |
| Electric actuator type | SR 05 |
| Electric actuator series | SA/NA series |
| Spring return time (s) | 1 |
| Voltage | 230 V AC |
| Positive safety type | Spring return |
| Warranty period | 1 year |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| 230 V AC 50 | 023080 | S1004633 |
€2,879.46
(excl. btw)
|
add to cart |
| 230 V AC 100 | 023090 | S1004634 |
€3,824.19
(excl. btw)
|
add to cart |
| 230 V AC 300 | 023106 | S1004635 |
€6,451.79
(excl. btw)
|
add to cart |
