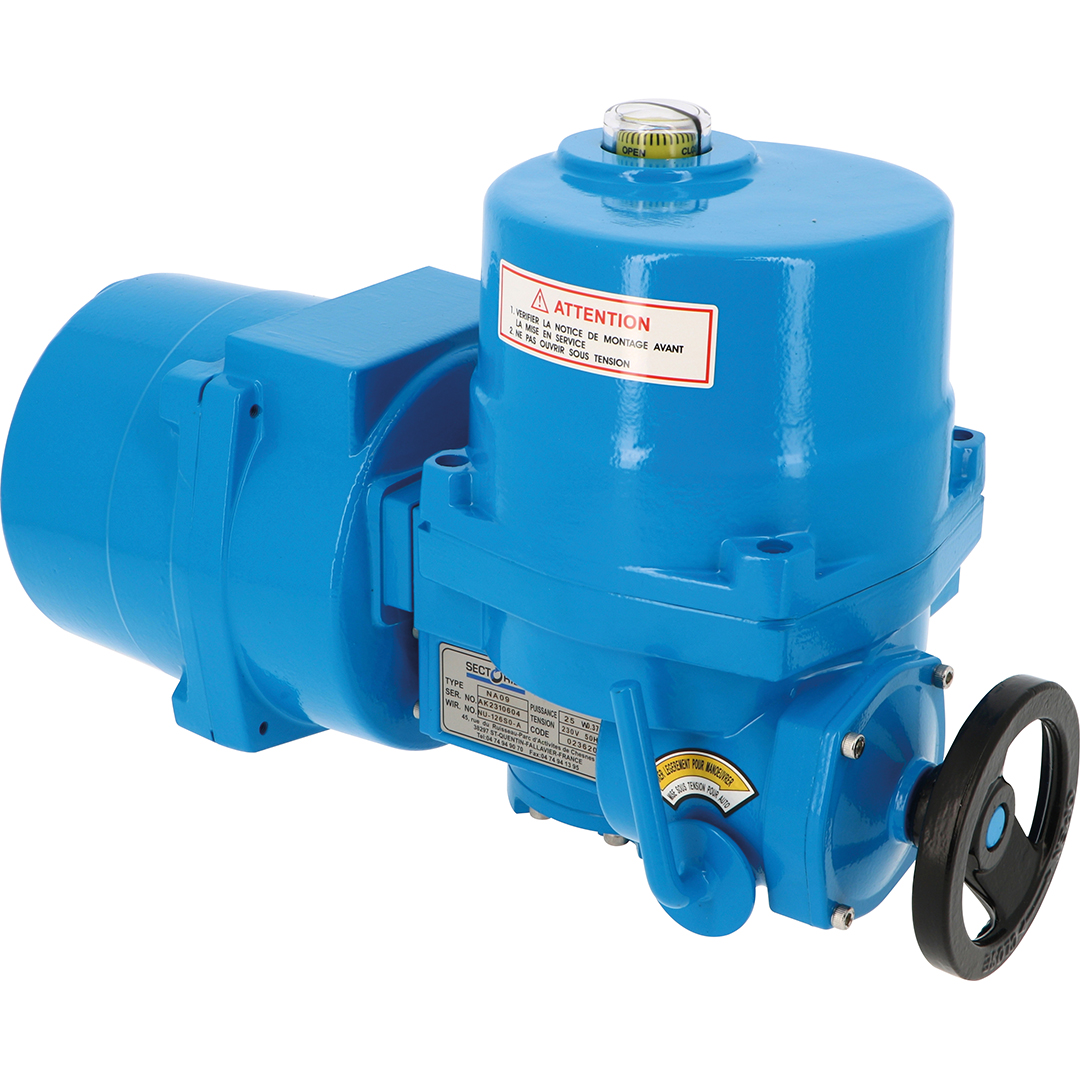

Fail safe electric actuator with 150 Nm torque and built-in super capacitor. Automatically returns to safe position on power loss. Includes manual override and ISO 5211 mounting.
| Specification | Value |
|---|---|
| Square, star (mm) | 17 |
| Manual override | By handwheel |
| Torque (Nm) | 90 |
| Declutchable | Yes |
| Starts/h (engine) | S2 duty service - 70% |
| Protection index (IP) | IP 67 |
| Torque limiter | No |
| Recommended location | Outdoor |
| ISO pad 5211 | F7 |
| Power (W) | 25 |
| Anti-condensation heater | Standard |
| Positive safety | No |
| Function | On-off |
| Electric actuator type | NA 09 SCP |
| Electric actuator series | SA/NA series |
| Operating time (s) | 17 |
| Voltage | 230 V AC |
| TS max (°C) | 70 |
| TS min (°C) | -20 |
| Positive safety type | Super capacitor |
| Warranty period | 1 year |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| 90 | 023620 | S1006132 |
€1,961.03
(excl. btw)
|
add to cart |
| 150 | 023630 | S1006133 |
€2,431.96
(excl. btw)
|
add to cart |
Wil je gebeld worden? Laat hier een bericht achter en een van onze adviseurs belt je op!
