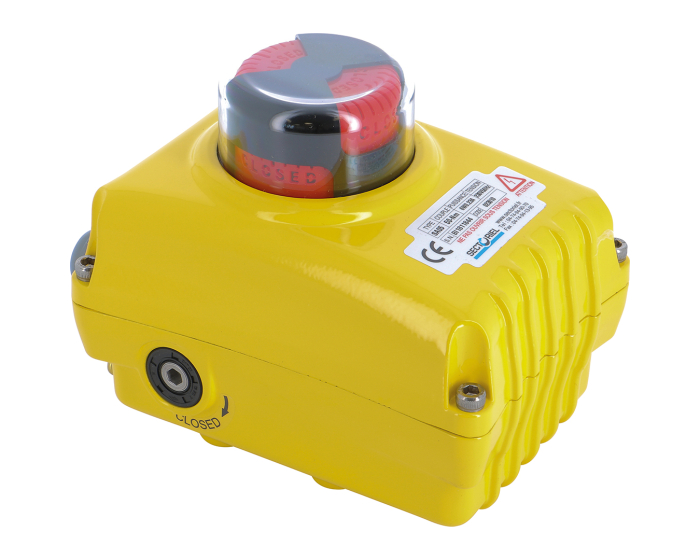

The Electric actuator 50 Nm for 1/4 turn valve with anti-condensation heater. Aluminium enclosure and cover with IP67 protection. Service S4 - 50%.
| Specification | Value |
|---|---|
| Square, star (mm) | 14 |
| Manual override | By key |
| Torque (Nm) | 50 |
| Declutchable | No |
| Duty service | S4 duty service - 50% |
| Protection index (IP) | IP 67 |
| Torque limiter | No |
| Recommended location | Outdoor |
| ISO pad 5211 | F3/F5/F7 |
| Power (W) | 6 |
| Anti-condensation heater | Standard |
| Positive safety | No |
| Function | On-off |
| Electric actuator type | SA 05 |
| Electric actuator series | SA/NA series |
| Operating time (s) | 17 |
| Voltage | 230 V AC |
| Warranty period | 1 year |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| 230 V AC 17 | 023010 | S1004178 |
€381.89
(excl. btw)
|
add to cart |
| 24 V AC/DC 10 | 023011 | S1004179 |
€381.89
(excl. btw)
|
add to cart |
| 12 V DC 11 | 023012 | S1004180 |
€379.44
(excl. btw)
|
add to cart |
| 230 V AC 100 | 023020 | S1004181 |
€477.36
(excl. btw)
|
add to cart |
| 24 V AC/DC 100 | 023021 | S1004182 |
€477.36
(excl. btw)
|
add to cart |
