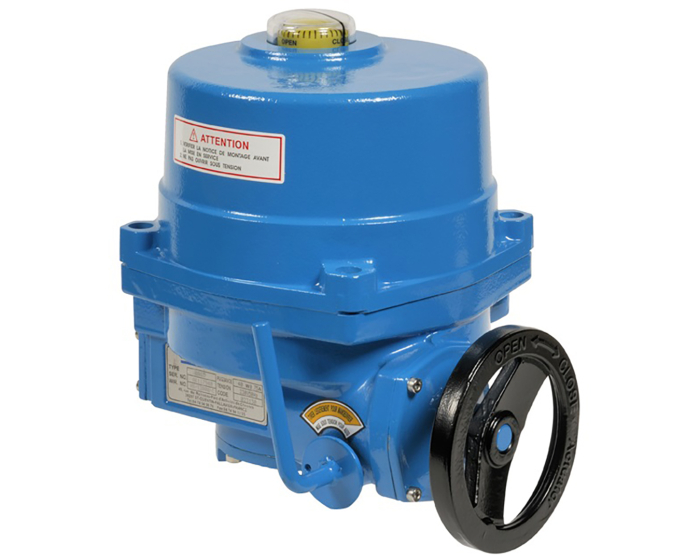

The electric actuator for 1/4 turn valve with anti-condensation heater, from 60 to 2500 Nm. Aluminium enclosure and cover with IP67 protection. Service S4 - 50%.
| Specification | Value |
|---|---|
| Square, star (mm) | 17 |
| Manual override | By handwheel |
| Torque (Nm) | 60 |
| Declutchable | Yes |
| Duty service | S4 duty service - 50% |
| Protection index (IP) | IP 67 |
| Torque limiter | No |
| Recommended location | Outdoor |
| ISO pad 5211 | F7 |
| Power (W) | 15 |
| Anti-condensation heater | Standard |
| Positive safety | No |
| Function | On-off |
| Electric actuator type | NA 06 |
| Electric actuator series | SA/NA series |
| Operating time (s) | 17 |
| Voltage | 230 V AC |
| Warranty period | 1 year |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| 230 V AC 60 | 023110 | S1004861 |
€753.17
(excl. btw)
|
add to cart |
| 24 V AC 60 | 023111 | S1004862 |
€1,079.26
(excl. btw)
|
add to cart |
| 3-400 V 60 | 023113 | S1004863 |
€753.17
(excl. btw)
|
add to cart |
| 24 V DC 60 | 023114 | S1004864 |
€1,079.26
(excl. btw)
|
add to cart |
| 230 V AC 90 | 023120 | S1004865 |
€784.99
(excl. btw)
|
add to cart |
| 24 V AC 90 | 023121 | S1004866 |
€1,097.93
(excl. btw)
|
add to cart |
| 3-400 V 90 | 023123 | S1004867 |
€784.99
(excl. btw)
|
add to cart |
| 24 V DC 90 | 023124 | S1004868 |
€1,097.93
(excl. btw)
|
add to cart |
| 230 V AC 150 | 023130 | S1004869 |
€969.57
(excl. btw)
|
add to cart |
| 24 V AC 150 | 023131 | S1004870 |
€1,294.19
(excl. btw)
|
add to cart |
| 3-400 V 150 | 023133 | S1004871 |
€969.57
(excl. btw)
|
add to cart |
| 24 V DC 150 | 023134 | S1004872 |
€1,294.19
(excl. btw)
|
add to cart |
| 230 V AC 280 | 023150 | S1004873 |
€1,097.93
(excl. btw)
|
add to cart |
| 24 V AC 280 | 023151 | S1004874 |
€1,331.10
(excl. btw)
|
add to cart |
| 3-400 V 280 | 023153 | S1004875 |
€1,097.93
(excl. btw)
|
add to cart |
| 24 V DC 280 | 023154 | S1004876 |
€1,331.10
(excl. btw)
|
add to cart |
| 230 V AC 380 | 023160 | S1004877 |
€1,219.91
(excl. btw)
|
add to cart |
| 3-400 V 380 | 023163 | S1004878 |
€1,219.91
(excl. btw)
|
add to cart |
| 230 V AC 600 | 023180 | S1004879 |
€1,425.71
(excl. btw)
|
add to cart |
| 3-400 V 600 | 023183 | S1004880 |
€1,425.71
(excl. btw)
|
add to cart |
| 230 V AC 1000 | 023200 | S1004881 |
€1,633.63
(excl. btw)
|
add to cart |
| 3-400 V 1000 | 023203 | S1004882 |
€1,633.63
(excl. btw)
|
add to cart |
| 230 V AC 1500 | 023210 | S1004883 |
€1,824.59
(excl. btw)
|
add to cart |
| 3-400 V 1500 | 023213 | S1004884 |
€1,824.59
(excl. btw)
|
add to cart |
| 230 V AC 2000 | 023220 | S1004885 |
€1,856.40
(excl. btw)
|
add to cart |
| 3-400 V 2000 | 023223 | S1004886 |
€1,856.40
(excl. btw)
|
add to cart |
| 230 V AC 2500 | 023230 | S1004887 |
€2,089.79
(excl. btw)
|
add to cart |
| 3-400 V 2500 | 023233 | S1004888 |
€2,089.79
(excl. btw)
|
add to cart |
