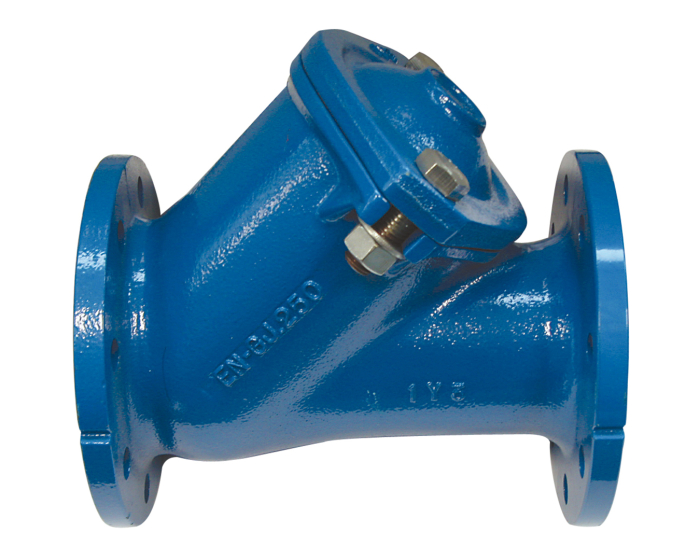

This flanged PN10 check valve features an NBR-coated aluminium or ductile iron ball depending on size. Designed for lifting stations, it ensures reliable backflow prevention in accordance with EN 12050-4.
| Specification | Value |
|---|---|
| DN inches NPS | 1''1/2 |
| Option certificate 3.1 | Yes |
| Mounting direction | Horizontal or vertical upward flow |
| EN face-to-face standard | EN 558 Series 48 |
| DIN face-to-face standard | DIN 3202 F6 |
| Tightness test standard | ISO 5208. Rate A |
| Closure member material | NBR coated aluminium |
| Lifting station standard | Yes |
| Application | Water supply and distribution network |
| DN | DN40 - 1''1/2 |
| Face to Face (mm) | 180.0 |
| Fluid | Cold water |
| Gasket | NBR |
| Kv (m³/h) | 60.0 |
| Body material | Ductile iron |
| PS (bar) | 10 |
| Connections | Flanged PN10/16 |
| Seats | Cast iron |
| TS max (°C) | 70 |
| TS min (°C) | -10 |
| Warranty period | 2 years |
| Obturator type | Ball |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged PN10/16 Ductile iron Ball DN40 - 1''1/2 | 336040 | S1011137 |
€121.04
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Ball DN50 - 2'' | 336050 | S1011138 |
€118.71
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Ball DN65 - 2''1/2 | 336065 | S1011139 |
€153.61
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Ball DN80 - 3'' | 336080 | S1011140 |
€211.81
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Ball DN100 - 4'' | 336100 | S1011141 |
€235.07
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Ball DN125 - 5'' | 336125 | S1011142 |
€425.94
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Ball DN150 - 6'' | 336150 | S1011143 |
€556.29
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Ball DN200 - 8'' | 336200 | S1011144 |
€977.57
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Ball DN250 - 10'' | 336250 | S1011145 |
€1,715.40
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Ball DN300 - 12'' | 336300 | S1011146 |
€2,520.74
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Ball DN350 - 14'' | 336350 | S1011147 |
€3,831.16
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Ball DN400 - 16'' | 336400 | S1011148 |
€6,296.03
(excl. btw)
|
add to cart |
