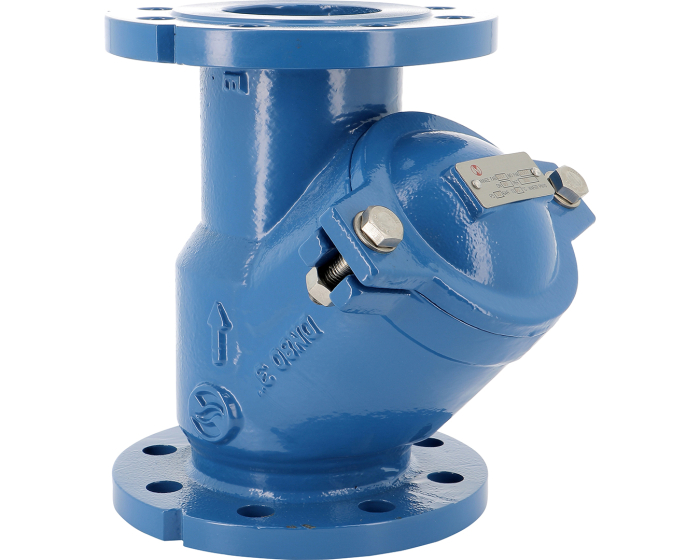

The ball check valve, series 332, in cast iron GJS-400-15, with inspection cover, epoxy paint, stainless steel bolts and nuts, fitting PN10/16, for water networks.
| Specification | Value |
|---|---|
| DN inches NPS | 1''1/2 |
| Option certificate 3.1 | Yes |
| Mounting direction | Horizontal or vertical upward flow |
| EN face-to-face standard | EN 558 Series 48 |
| DIN face-to-face standard | DIN 3202 F6 |
| Tightness test standard | ISO 5208. Rate A |
| Closure member material | NBR |
| Application | Water supply and distribution network |
| DN | DN40 - 1''1/2 |
| Face to Face (mm) | 178.0 |
| Fluid | Cold water |
| Gasket | NBR |
| Kv (m³/h) | 60.0 |
| Body material | Ductile iron |
| PS (bar) | 10 |
| Connections | Flanged PN10/16 |
| Seats | Cast iron |
| TS max (°C) | 80 |
| TS min (°C) | -10 |
| Warranty period | 2 years |
| Obturator type | Ball |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged PN10/16 Ductile iron Ball DN40 - 1''1/2 | 332040 | S1011127 |
€49.26
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Ball DN50 - 2'' | 332050 | S1011128 |
€57.59
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Ball DN65 - 2''1/2 | 332065 | S1011129 |
€87.90
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Ball DN80 - 3'' | 332080 | S1011130 |
€91.04
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Ball DN100 - 4'' | 332100 | S1011131 |
€123.36
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Ball DN125 - 5'' | 332125 | S1011132 |
€241.71
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Ball DN150 - 6'' | 332150 | S1011133 |
€277.31
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Ball DN200 - 8'' | 332200 | S1011134 |
€460.11
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Ball DN250 - 10'' | 332250 | S1011135 |
€981.44
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Ball DN300 - 12'' | 332300 | S1011136 |
€1,321.21
(excl. btw)
|
add to cart |
