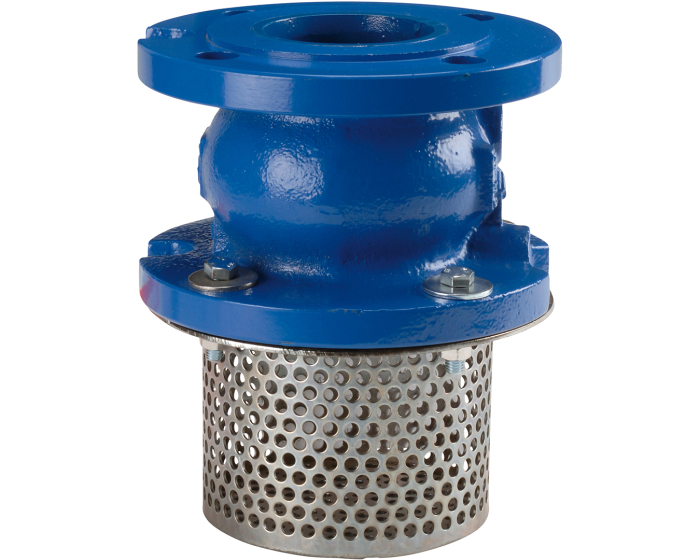

The GJL-250 series 363 single guide check valve in cast iron with flanges and galvanised steel strainer PN10/16, ACS 4MS certified, for water networks.
| Specification | Value |
|---|---|
| DN inches NPS | 2'' |
| Option certificate 3.1 | Yes |
| Mounting direction | Vertical |
| Tightness test standard | ISO 5208. Rate A |
| Closure member material | Cast iron |
| Strainer basket material | Galvanised carbon steel |
| Application | Water supply and distribution network |
| DN | DN50 - 2'' |
| Face to Face (mm) | 100.0 |
| Fluid | Hot / Cold water |
| Gasket | EPDM |
| Kv (m³/h) | 86.0 |
| Body material | Cast iron |
| PS (bar) | 16 |
| Connections | Flanged PN10/16 |
| Seats | Cast iron |
| Screen (mesh) | 60/10° |
| TS max (°C) | 120 |
| TS min (°C) | -10 |
| Drinking water compatibility | Yes |
| Obturator type | Nozzle |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged PN10/16 Cast iron Nozzle DN50 - 2'' | 363050 | S1011157 |
€127.49
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron Nozzle DN65 - 2''1/2 | 363065 | S1011158 |
€169.07
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron Nozzle DN80 - 3'' | 363080 | S1011159 |
€208.94
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron Nozzle DN100 - 4'' | 363100 | S1011160 |
€283.29
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron Nozzle DN125 - 5'' | 363125 | S1011161 |
€396.76
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron Nozzle DN150 - 6'' | 363150 | S1011162 |
€556.70
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron Nozzle DN200 - 8'' | 363200 | S1011163 |
€839.53
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron Nozzle DN250 - 10'' | 363250 | S1011164 |
€2,439.76
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron Nozzle DN300 - 12'' | 363300 | S1011165 |
€3,275.70
(excl. btw)
|
add to cart |
