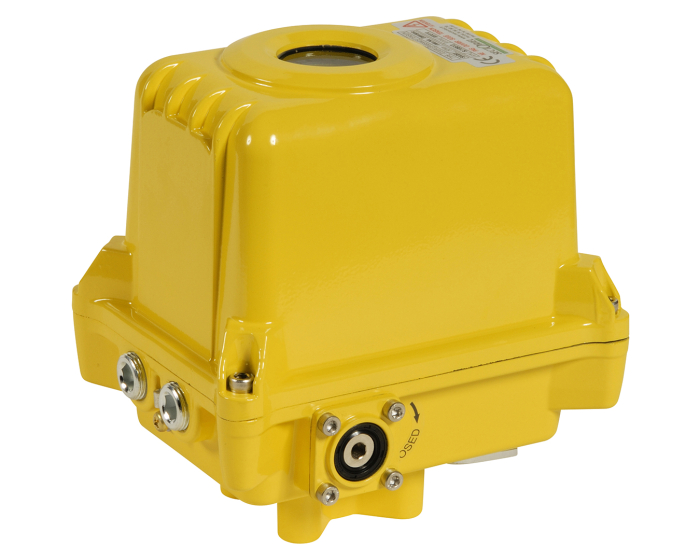

The ATEX 50 Nm electric actuator for 1/4 turn valve with anti-condensation heater. Aluminium enclosure and cover with IP67 protection. Service S4 - 50%.
| Specification | Value |
|---|---|
| ATEX atmosphere | IIB |
| Square, star (mm) | 14 |
| Manual override | By key |
| Torque (Nm) | 50 |
| Declutchable | No |
| Duty service | S4 duty service - 50% |
| Protection index (IP) | IP 67 |
| Torque limiter | No |
| Recommended location | Outdoor |
| ATEX protection mode | Ex d |
| ISO pad 5211 | F3/F5/F7 |
| Power (W) | 6 |
| Anti-condensation heater | Standard |
| Positive safety | No |
| Function | On-off |
| Electric actuator type | SA 05X |
| Electric actuator series | SA-X/NA-X ATEX series |
| Operating time (s) | 17 |
| Surface temperature | T4 |
| Voltage | 230 V AC |
| ATEX zone | 1. 2 |
| Warranty period | 1 year |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| 230 V AC 50 | 023310 | S1004941 |
€588.74
(excl. btw)
|
add to cart |
| 24 V AC/DC 50 | 023311 | S1004942 |
€588.74
(excl. btw)
|
add to cart |
| 24 V AC/DC 90 | 023367 | S1004943 |
€594.66
(excl. btw)
|
add to cart |
| 230 V AC 90 | 023369 | S1004944 |
€594.66
(excl. btw)
|
add to cart |
