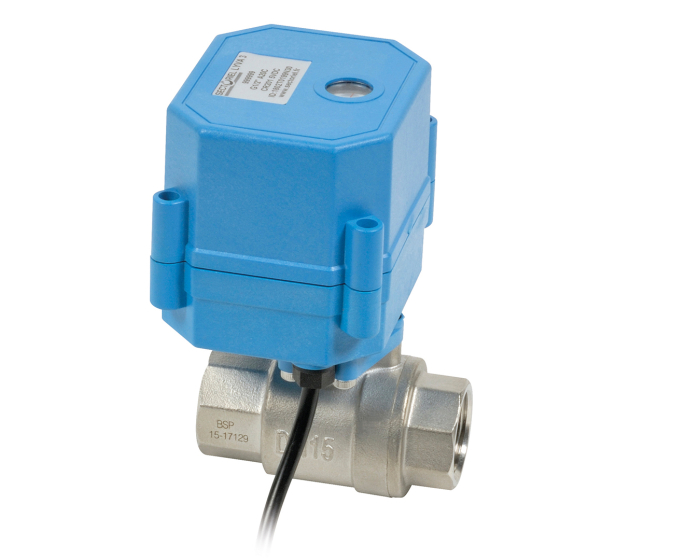

The LYVA 3 is a stainless steel ball valve with a 2-wire capacitor return electric actuator, NC or NO, with ACS (drinking water) approval.
| Specification | Value |
|---|---|
| Option certificate 3.1 | No |
| Shaft/stem matérial | Stainless steel 316 |
| DN | DN8 - 1/4'' |
| Face to Face (mm) | 51.0 |
| Protection index (IP) | IP 67 |
| Gasket | EPDM |
| Body material | Stainless steel CF8M (1.4408) |
| Position | Normally closed |
| PS (bar) | 10 |
| Connections | BSP FF |
| Operating time (s) | 6.0 |
| Voltage | 24 V AC/DC |
| TS max (°C) | 90 |
| TS min (°C) | 0 |
| Solenoid pilot valve ways | 2/2 |
| Warranty period | 1 year |
| CE | Excluded (Article 4. §3) |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF Stainless steel CF8M (1.4408) DN8 - 1/4'' 24 V AC/DC Normally closed | 89321C0132 | S1003899 |
€75.31
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN10 - 3/8'' 24 V AC/DC Normally closed | 89321C0133 | S1003900 |
€75.31
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) 230 V AC DN8 - 1/4'' Normally closed | 89321C0152 | S1003901 |
€88.06
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) 230 V AC DN10 - 3/8'' Normally closed | 89321C0153 | S1003902 |
€88.06
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN15 - 1/2'' 24 V AC/DC Normally closed | 89321C0232 | S1003903 |
€64.64
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN20 - 3/4'' 24 V AC/DC Normally closed | 89321C0233 | S1003904 |
€73.27
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN25 - 1'' 24 V AC/DC Normally closed | 89321C0234 | S1003905 |
€86.56
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN15 - 1/2'' 230 V AC Normally closed | 89321C0252 | S1003906 |
€69.94
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN20 - 3/4'' 230 V AC Normally closed | 89321C0253 | S1003907 |
€85.86
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN25 - 1'' 230 V AC Normally closed | 89321C0254 | S1003908 |
€96.81
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN32 - 1''1/4 24 V AC/DC Normally closed | 89321C0332 | S1003909 |
€207.46
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN40 - 1''1/2 24 V AC/DC Normally closed | 89321C0333 | S1003910 |
€240.79
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN50 - 2'' 24 V AC/DC Normally closed | 89321C0334 | S1003911 |
€291.99
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN32 - 1''1/4 230 V AC Normally closed | 89321C0352 | S1003912 |
€225.30
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN40 - 1''1/2 230 V AC Normally closed | 89321C0353 | S1003913 |
€247.41
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN50 - 2'' 230 V AC Normally closed | 89321C0354 | S1003914 |
€311.73
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN8 - 1/4'' 24 V AC/DC Normally open | 89322C0132 | S1003915 |
€63.11
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN10 - 3/8'' 24 V AC/DC Normally open | 89322C0133 | S1003916 |
€63.11
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) 230 V AC DN8 - 1/4'' Normally open | 89322C0152 | S1003917 |
€72.81
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) 230 V AC DN10 - 3/8'' Normally open | 89322C0153 | S1003918 |
€72.81
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN15 - 1/2'' 24 V AC/DC Normally open | 89322C0232 | S1003919 |
€66.83
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN20 - 3/4'' 24 V AC/DC Normally open | 89322C0233 | S1003920 |
€71.80
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN25 - 1'' 24 V AC/DC Normally open | 89322C0234 | S1003921 |
€78.81
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN15 - 1/2'' 230 V AC Normally open | 89322C0252 | S1003922 |
€71.31
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN20 - 3/4'' 230 V AC Normally open | 89322C0253 | S1003923 |
€78.76
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN25 - 1'' 230 V AC Normally open | 89322C0254 | S1003924 |
€96.53
(excl. btw)
|
add to cart |
