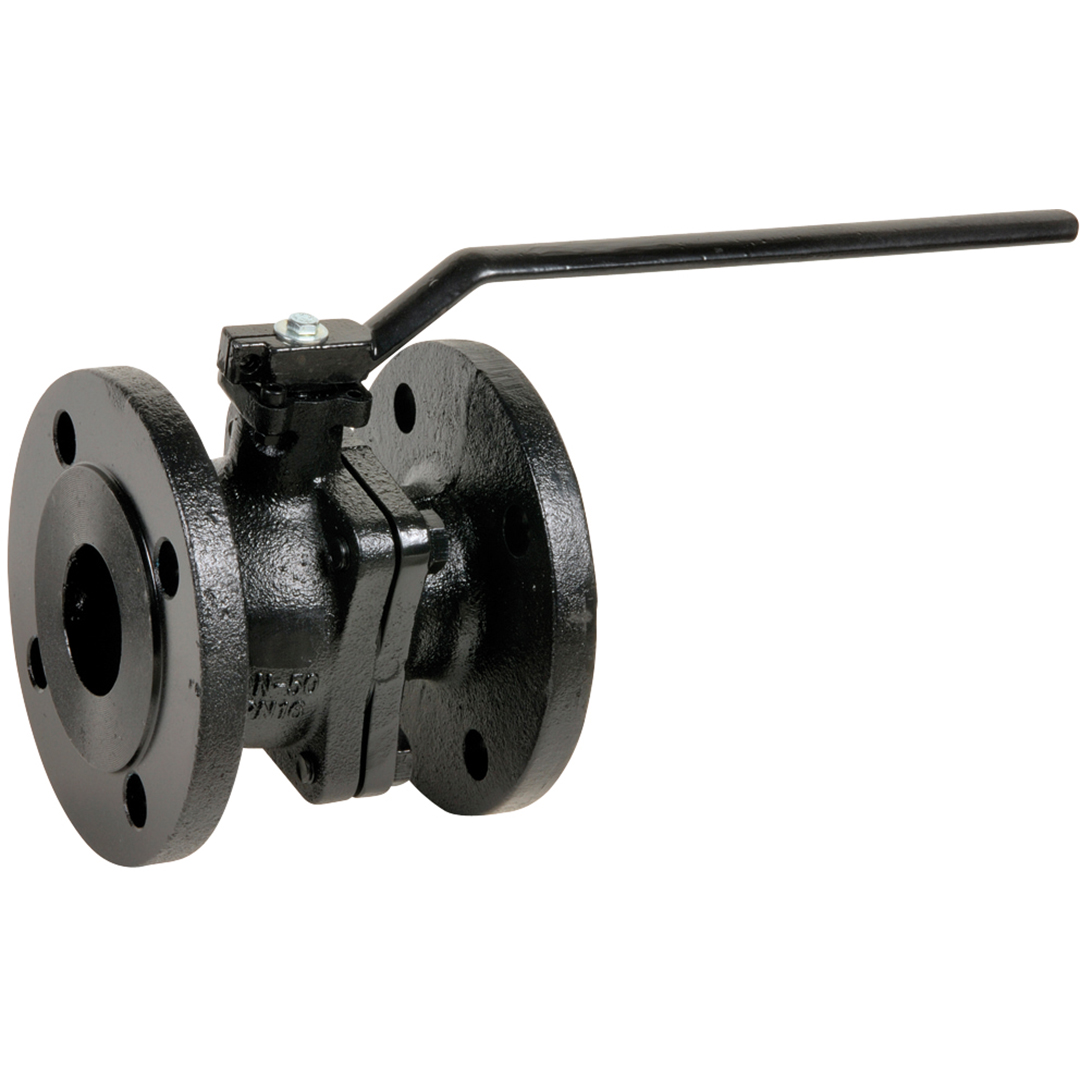

The cast iron ball valve with ISO pad 5211 full bore Series 505 is manufactured to standard NF 29323 face to face. It is compatible for explosive atmospheres, ATEX Zone 1 & 21 and Zone 2 & 22.
| Specification | Value |
|---|---|
| DN inches NPS | 1''1/2 |
| DN metric | 40/49 |
| Construction standard | DIN 3357 - DIN3840 |
| Brand | ICP VALVES |
| Opening device | Handle |
| Application | Heating / Sanitary / Drinking water / Air conditioning / Irrigation |
| Shaft/stem matérial | Stainless steel AISI 304 |
| DN | DN40 - 1''1/2 |
| Face to Face (mm) | 136.0 |
| Fluid | Hot water / Cold water / Drinking water |
| Body material | Cast iron |
| Number of ways | 2 |
| Bore | Full |
| PS (bar) | 16 |
| Connections | Flanged PN10/16 |
| Seats | PTFE |
| Ball material | Stainless steel AISI 304 |
| TS max (°C) | 200 |
| TS min (°C) | -10 |
| Warranty period | 2 years |
| Handle material | Carbon steel |
| Handle type | Black lever |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged PN10/16 Cast iron Full DN40 - 1''1/2 | 505040 | S1010067 |
€84.61
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron Full DN50 - 2'' | 505050 | S1010068 |
€105.90
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron Full DN65 - 2''1/2 | 505065 | S1010069 |
€151.16
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron Full DN80 - 3'' | 505080 | S1010070 |
€189.20
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron Full DN100 - 4'' | 505100 | S1010071 |
€272.17
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron Full DN125 - 5'' | 505125 | S1010072 |
€438.37
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron Full DN150 - 6'' | 505150 | S1010073 |
€732.79
(excl. btw)
|
add to cart |
