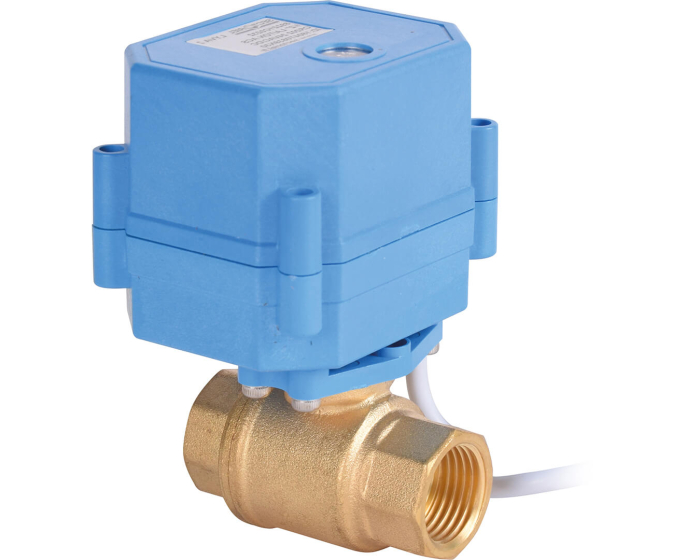

The LYVA 2 is a brass ball valve with a 2-wire capacitor return electric actuator, NC or NO, with ACS approval (drinking water).
| Specification | Value |
|---|---|
| Option certificate 3.1 | No |
| Shaft/stem matérial | Brass CW617N |
| DN | DN15 - 1/2'' |
| Face to Face (mm) | 57.0 |
| Protection index (IP) | IP 67 |
| Gasket | EPDM |
| Body material | Brass CW617N |
| Position | Normally closed |
| PS (bar) | 10 |
| Connections | BSP FF |
| Operating time (s) | 6.0 |
| Voltage | 24 V AC/DC |
| TS max (°C) | 90 |
| TS min (°C) | 0 |
| Solenoid pilot valve ways | 2/2 |
| Warranty period | 1 year |
| CE | Excluded (Article 4. §3) |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF Brass CW617N DN15 - 1/2'' 24 V AC/DC Normally closed | 89221C0232 | S1003789 |
€56.09
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN20 - 3/4'' 24 V AC/DC Normally closed | 89221C0233 | S1003790 |
€60.69
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN25 - 1'' 24 V AC/DC Normally closed | 89221C0234 | S1003791 |
€67.54
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN15 - 1/2'' 230 V AC Normally closed | 89221C0252 | S1003792 |
€67.89
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN20 - 3/4'' 230 V AC Normally closed | 89221C0253 | S1003793 |
€69.09
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN25 - 1'' 230 V AC Normally closed | 89221C0254 | S1003794 |
€78.11
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN32 - 1''1/4 24 V AC/DC Normally closed | 89221C0332 | S1003795 |
€176.73
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN40 - 1''1/2 24 V AC/DC Normally closed | 89221C0333 | S1003796 |
€202.33
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN50 - 2'' 24 V AC/DC Normally closed | 89221C0334 | S1003797 |
€240.73
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN32 - 1''1/4 230 V AC Normally closed | 89221C0352 | S1003798 |
€183.50
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN40 - 1''1/2 230 V AC Normally closed | 89221C0353 | S1003799 |
€215.16
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN50 - 2'' 230 V AC Normally closed | 89221C0354 | S1003800 |
€248.44
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN15 - 1/2'' 24 V AC/DC Normally open | 89222C0232 | S1003801 |
€54.29
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN20 - 3/4'' 24 V AC/DC Normally open | 89222C0233 | S1003802 |
€55.59
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN25 - 1'' 24 V AC/DC Normally open | 89222C0234 | S1003803 |
€67.87
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN15 - 1/2'' 230 V AC Normally open | 89222C0252 | S1003804 |
€66.40
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN20 - 3/4'' 230 V AC Normally open | 89222C0253 | S1003805 |
€72.19
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN25 - 1'' 230 V AC Normally open | 89222C0254 | S1003806 |
€78.11
(excl. btw)
|
add to cart |
