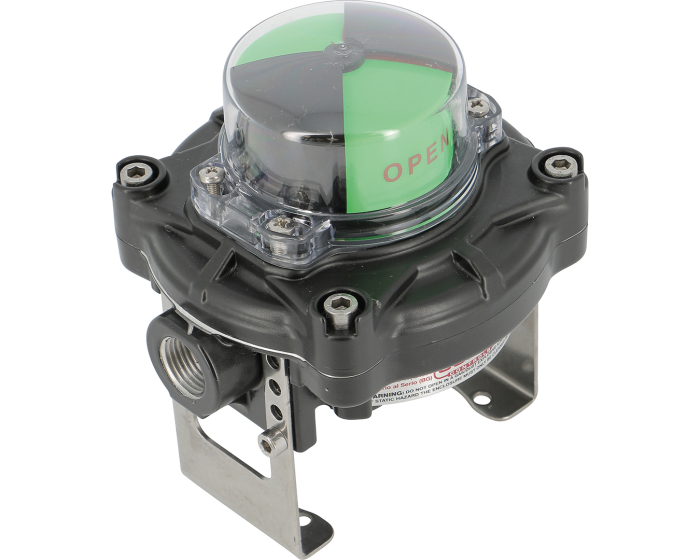

Limit switch box certified ATEX II 2 G/D Ex d IIC T6, body and cap in polyester coated aluminium, stainless steel shaft, adjustable 3D position indicator. IP 67. 2 inputs 1/2" NPT. 2 SPDT mechanical switches or inductive detectors.
| Specification | Value |
|---|---|
| EVAC Article Nr. | S100572 |
| ATEX atmosphere | IIC |
| ATEX compatible | Yes |
| ATEX protection mode | EEx d |
| ATEX zone | 1. 2. 21. 22 |
| CE_CERT | CE |
| Electrical connection | 1/2'' NPT |
| Body material | Aluminium |
| Product | Reference |
| Produit Limit switch box SK IP67 anti-explosion IIC 2 SPDT mechanical switches | érence 0477012N |
| Protection index (IP) | IP 67 |
| SKU | 0477012N |
| Surface temperature | T4/T5/T6 |
| TS max (°C) | 80 |
| TS min (°C) | -20 |
| Voltage | 230 V AC |
| Warranty period | 1 year |
