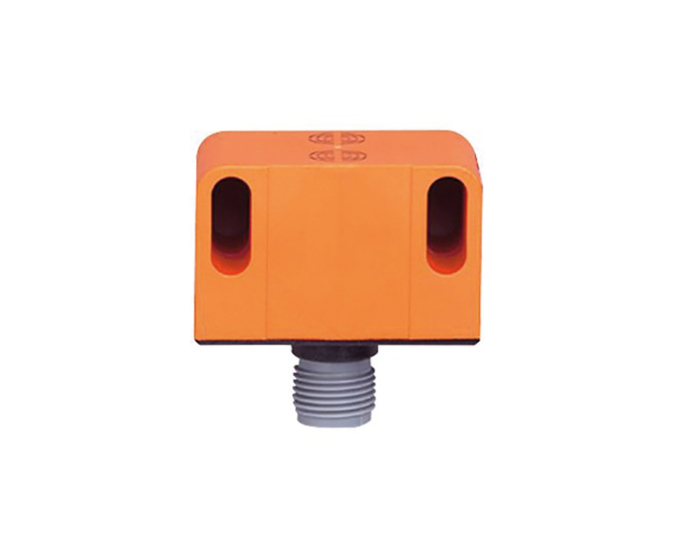

Double inductive Namur ATEX sensor for pneumatic actuator. 2 NAMUR 2 wires NC contacts, M12 connector. To be used with cam E12517, E12526 or E17328. IP67 protection. TS : -20 / +70°C.
| Specification | Value |
|---|---|
| EVAC Article Nr. | S100573 |
| ATEX atmosphere | IIC |
| ATEX compatible | Yes |
| ATEX protection mode | EEx ia |
| ATEX zone | 0.1.2.20.21.22 |
| CE_CERT | CE |
| Electrical connection | Connector M12 x 1 |
| FILES_3D_PATHS | output/datasheets/121146n/31869 |
| In categories | Position detectors |
| Body material | PBT |
| Protection index (IP) | IP 67 |
| SKU | 121146N |
| Surface temperature | T6 |
| Switch type | 2-wire inductors - NAMUR - 2 NC outputs |
| TS max (°C) | 70 |
| TS min (°C) | -20 |
| Voltage | 7.5-15 V DC |
| Warranty period | 1 year |
