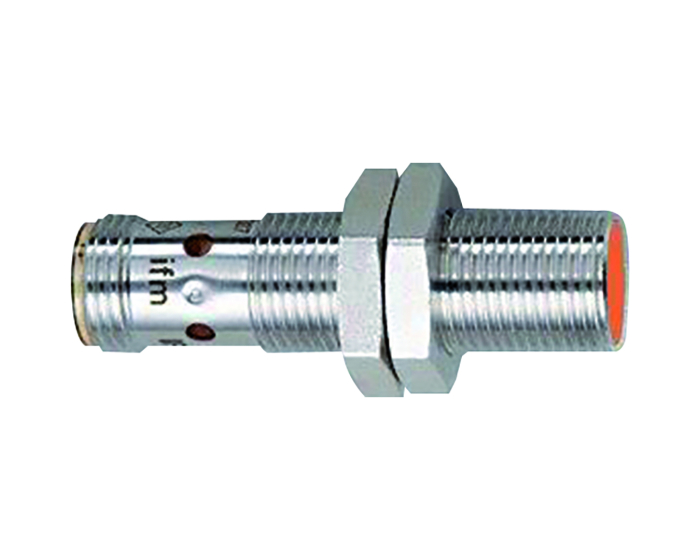

Inductive position detector IFM IF 503 A DN50 to 150
Inductive sensor ATEX 3 L/R type IFM IF503A 10-36 Vdc PNP NO 3 wires with M12 connector for knife valves from DN50 to DN150. ATEX zones 2 and 22.
| Specification | Value |
|---|---|
| EVAC Article Nr. | S101016 |
| ATEX atmosphere | IIC |
| ATEX protection mode | EEx nA |
| ATEX zone | 2. 22 |
| Electrical connection | M12 connector |
| In categories | Pneumatic actuated knife gate valves |
| Size | 50 |
| SKU | 121154N |
| Surface temperature | T6 |
| Switch type | inductive 3-wire. PNP NO |
