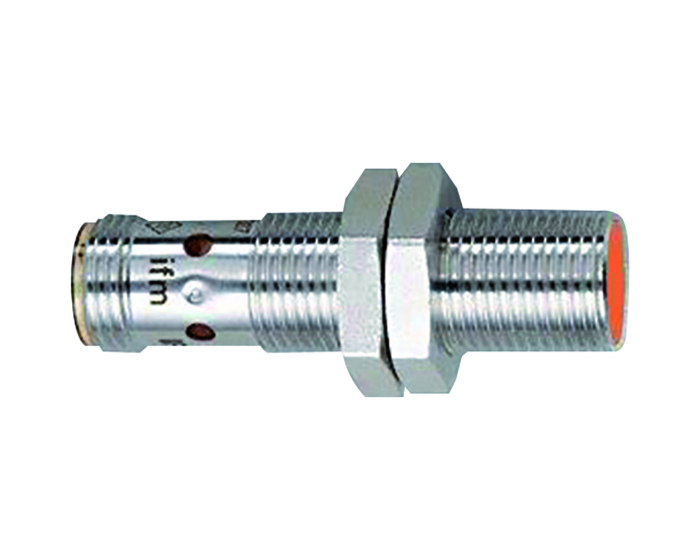

Inductive position detector IFM IF 503 A DN200 to 300
Inductive sensor ATEX 3 L/R type IFM IF503A 10-36 Vdc PNP NO 3 wires with M12 connector for knife valves from DN200 to DN300. ATEX zones 2 and 22.
| Specification | Value |
|---|---|
| EVAC Article Nr. | S101035 |
| ATEX atmosphere | IIC |
| ATEX protection mode | EEx nA |
| ATEX zone | 2. 22 |
| Electrical connection | M12 connector |
| In categories | Pneumatic actuated knife gate valves |
| Size | 200 |
| SKU | 121155N |
| Surface temperature | T6 |
| Switch type | inductive 3-wire. PNP NO |
