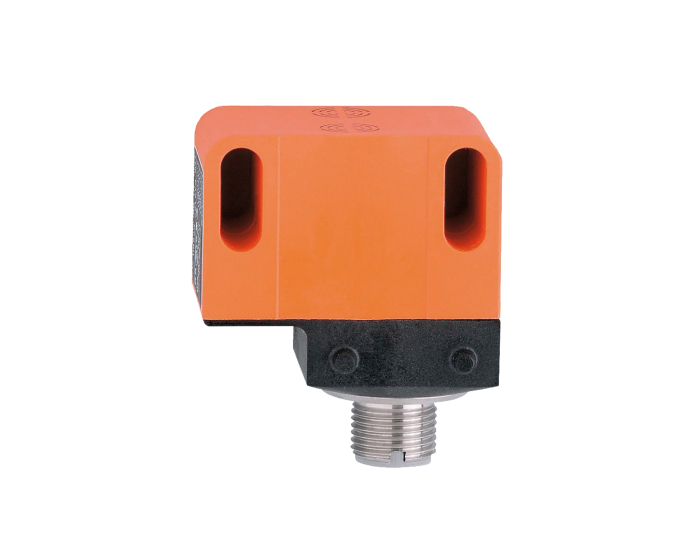

Inductive position detector
Double inductive sensor for pneumatic actuator. 2 PNP NO contacts. Output via M12 connector. Can be combined with cam E12517, E12526 or E17328. IP67 protection. TS : -25 / +80°C.
| Specification | Value |
|---|---|
| EVAC Article Nr. | S100699 |
| ATEX compatible | No |
| CE_CERT | CE |
| Electrical connection | Connector M12 x 1 |
| FILES_3D_PATHS | output/datasheets/121152n/31873 |
| In categories | Position detectors |
| Body material | PBT |
| Protection index (IP) | IP 67 |
| SKU | 121152N |
| Switch type | 2 inductive sensors - PNP - 2 NO outputs |
| TS max (°C) | 80 |
| TS min (°C) | -25 |
| Voltage | 11-36 V DC |
| Warranty period | 1 year |
