Name: Cast steel A216WCB gate valve 147 RF PN16 DIN F5 DN50
SKU: 10662
Price: 252.88571428571 EUR
Availability: InStock

Cast steel A216WCB gate valve 147 RF PN16 DIN F5 DN50

Cast steel A216WCB gate valve 147 RF PN16 DIN F5 DN50

€252.89 (excl. btw)

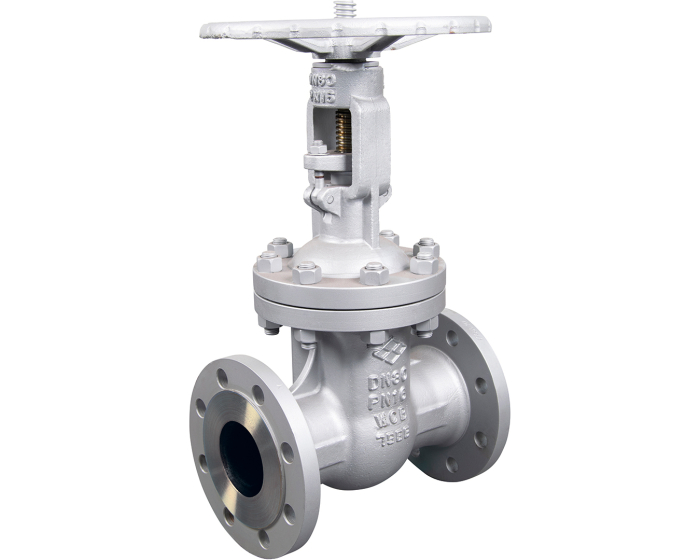

The series 147 gate valve is made of cast carbon steel, TRIM 8, flanged RF PN16, EN 558 series 15 face to face, graphite packing gland and stainless steel/graphite bonnet gasket, ATEX compatible. For steam, petrochemical, oil and gas.

In stock Subject prior to sales
Categories : Schuifafsluiters

Documenten:

Certificate of conformity	Download
Manual	Download
Manual FR	Download
Technical datasheet	Download
Technical datasheet FR	Download

Description
Technical Specifications

The DIN cast steel gate valve Our DIN carbon steel gate valve presents an A216WCB cast steel body and is a TRIM 8 PN16 flanged model. Withstanding a maximum pressure of 16 bar, allowing temperatures ranging from -29 C up to +425 °C, this cast steel gate valve is available in various sizes, from DN50 to DN300. It is face to face according to EN 558 series 15 (DIN 3202 series F5). It also boasts a number of other technical characteristics: It is a full-bore valve Stem is rising and non-rotating Handwheel is fixed and non-rising Wedge is one-piece and flexible Bolted bonnet and gland pack Seat is made of A150 carbon steel with Stellite® Gr.6 Painting is RAL 7001 grey colour and 60 µm thick This DIN cast steel gate valve is mainly used in industries such as water distribution, gas oil, steam, petrochemical and petroleum industries, and gas systems.

Specification	Value
DN inches NPS	2''
Option certificate 3.1	Yes
Bonnet material	Carbon steel ASTM A216 WCB
Construction standard	IN 1984
CE risk category	III Module H
Paint coating thickness (µm)	60.00
DIN face-to-face standard	DIN 3202-1 F5
Face to face standard	EN 558 series 15. DIN 3202-1 F5
Tightness test standard	EN 12266-1. Rate B
Bonnet	Bolted
Opening device	Handwheel
Application	Industry
ATEX atmosphere	Group II Cat. 2G/2D
Shaft/stem matérial	Stainless steel ASTM A182 F6a
ATEX compatible	Yes
Torque (Nm)	35
DN	50
Face to Face (mm)	250.0
Sealing	Metal / Metal
Fluid	Oxygen / Argon / Nitrogen
Gasket	Graphite
Kv (m³/h)	265.0
Body material	Carbon steel A216 WCB (1.0619)
Gate material	Carbon steel ASTM A216 WCB. stainless steel 13Cr coating
Bore	Full
Packing gland	Yes
PS (bar)	16
Connections	Flanged PN10/16
RAL (Paint)	7001
Seats	Carbon steel ASTM A105. stellite Gr.6 coated
TS max (°C)	425
TS min (°C)	-29
ATEX zone	1 & 21. 2 & 22
Warranty period	2 years
Type of stem	Rising
CE	Yes
Main product colour	Grey

If you have any questions about this product, please feel free to contact us.

Product Name	Product Number	EVAC Number	Price	Add to Cart
10663	Flanged PN10/16 Carbon steel A216 WCB (1.0619) Full 50	147050	S1010511	€252.89 (excl. btw)	add to cart
10664	Flanged PN10/16 Carbon steel A216 WCB (1.0619) Full 65	147065	S1010512	€329.30 (excl. btw)	add to cart
10665	Flanged PN10/16 Carbon steel A216 WCB (1.0619) Full 80	147080	S1010513	€450.86 (excl. btw)	add to cart
10666	Flanged PN10/16 Carbon steel A216 WCB (1.0619) Full 100	147100	S1010514	€549.86 (excl. btw)	add to cart
10667	Flanged PN10/16 Carbon steel A216 WCB (1.0619) Full 125	147125	S1010515	€748.36 (excl. btw)	add to cart
10668	Flanged PN10/16 Carbon steel A216 WCB (1.0619) Full 150	147150	S1010516	€1,020.63 (excl. btw)	add to cart
10669	Flanged PN10/16 Carbon steel A216 WCB (1.0619) Full 200	147200	S1010517	€1,539.19 (excl. btw)	add to cart
10670	Flanged PN10/16 Carbon steel A216 WCB (1.0619) Full 250	147250	S1010518	€2,080.80 (excl. btw)	add to cart
10671	Flanged PN10/16 Carbon steel A216 WCB (1.0619) Full 300	147300	S1010519	€3,167.11 (excl. btw)	add to cart
10672	Flanged PN10/16 Carbon steel A216 WCB (1.0619) Full 350	147350	S1010520	€4,220.26 (excl. btw)	add to cart
10673	Flanged PN10/16 Carbon steel A216 WCB (1.0619) Full 400	147400	S1010521	€5,627.86 (excl. btw)	add to cart
