Name: Cast iron Y-strainer 236 RF PN10/16 high temperature DN15
SKU: 11507
Price: 38.685714285714 EUR
Availability: InStock

Cast iron Y-strainer 236 RF PN10/16 high temperature DN15

Cast iron Y-strainer 236 RF PN10/16 high temperature DN15

€38.69 (excl. btw)

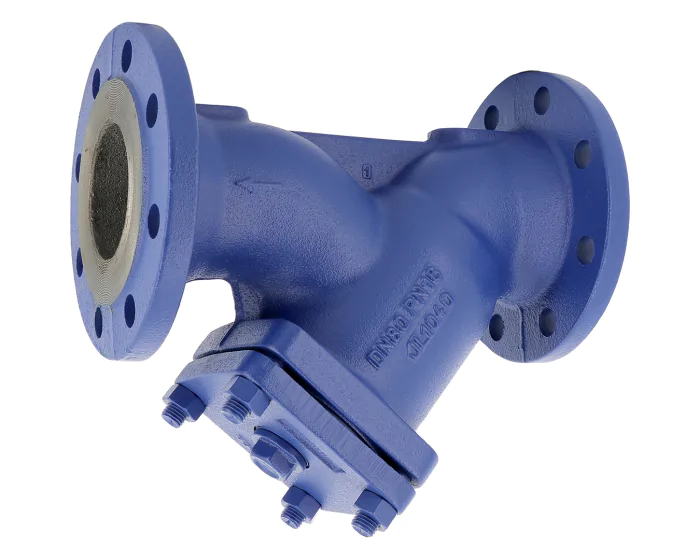

The 236 series Y-strainer is made of cast iron, flanges PN16, stainless steel screen with removable strainer, and draining cap. For the filtration of high temperature fluids, hot water, steam, air, water treatment and irrigation.

In stock Subject prior to sales
Categories : Filters

Documenten:

Certificate of conformity	Download
Manual	Download
Manual FR	Download
Other	Download
Technical datasheet	Download
Technical datasheet FR	Download

Description
Technical Specifications

PN16 flanged cast-iron strainer for high temperature specifications Our reference 236 is a PN16 flanged strainer made in cast iron and designed to be used with high temperature specifications. With its CF8M stainless-steel body and its F304 stainless-steel screen, this model also benefits from a wide range of other technical characteristics, listed below: This strainer is available from DN15 to DN200 The flanges are RF PN10/16 up to DN150, and PN16 for DN200 The stainless-steel filter is removable The mesh is 1mm up to DN50, 1.25mm from DN65 to DN80, and 1.6mm up to DN200 The strainer can be mounted in horizontal or vertical position with descendant fluid, respecting the flow direction indicated by the arrow It has a bolted bonnet with a threaded BSP draining cap It is coated with blue RAL 5002 painting, 100 µm thickness It can be used with operating temperatures ranging from -10 °C to +300 °C The maximum pressure is 16 bar, and 10 bar with steam The PN16 flanged cast-iron strainer for high temperature specifications can be used with all common fluids, but is specifically indicated for steam systems.

Specification	Value
DN inches NPS	1/2''
Option certificate 3.1	Yes
DN metric	15/21
Bonnet material	Cast iron EN GJL-250
Mounting direction	Horizontal or vertical
Screen material	AISI 304 stainless steel
CE risk category	III Module H
Paint coating thickness (µm)	100.00
EN face-to-face standard	EN 558 series 1
DIN face-to-face standard	DIN 3202-1 F1
Face to face standard	EN 558 Series 1. DIN 3202-1 F1. NF 29354
Flange type	RF
Accessories for flanges	Carbon steel C35E
Steam	Yes
Application	Industry
DN	DN15 - 1/2''
Face to Face (mm)	130.0
Fluid	Steam
Gasket	Graphite
Kv (m³/h)	5.7
Body material	Cast iron
PS (bar)	16
Connections	Flanged PN10/16
RAL (Paint)	5002
Screen (mesh)	10/10°
TS max (°C)	300
TS min (°C)	-10
Warranty period	2 years
CE	Yes
Main product colour	Blue
Filter design	Y

If you have any questions about this product, please feel free to contact us.

Product Name	Product Number	EVAC Number	Price	Add to Cart
11508	Flanged PN10/16 Cast iron DN15 - 1/2''	236015	S1011275	€38.69 (excl. btw)	add to cart
11509	Flanged PN10/16 Cast iron DN20 - 3/4''	236020	S1011276	€42.97 (excl. btw)	add to cart
11510	Flanged PN10/16 Cast iron DN25 - 1''	236025	S1011277	€45.10 (excl. btw)	add to cart
11511	Flanged PN10/16 Cast iron DN32 - 1''1/4	236032	S1011278	€57.70 (excl. btw)	add to cart
11512	Flanged PN10/16 Cast iron DN40 - 1''1/2	236040	S1011279	€73.01 (excl. btw)	add to cart
11513	Flanged PN10/16 Cast iron DN50 - 2''	236050	S1011280	€83.80 (excl. btw)	add to cart
11514	Flanged PN10/16 Cast iron DN65 - 2''1/2	236065	S1011281	€124.61 (excl. btw)	add to cart
11515	Flanged PN10/16 Cast iron DN80 - 3''	236080	S1011282	€158.97 (excl. btw)	add to cart
11516	Flanged PN10/16 Cast iron DN100 - 4''	236100	S1011283	€223.37 (excl. btw)	add to cart
11517	Flanged PN10/16 Cast iron DN125 - 5''	236125	S1011284	€335.11 (excl. btw)	add to cart
11518	Flanged PN10/16 Cast iron DN150 - 6''	236150	S1011285	€455.36 (excl. btw)	add to cart
11519	Flanged PN10/16 Cast iron DN200 - 8''	236200	S1011286	€807.27 (excl. btw)	add to cart
