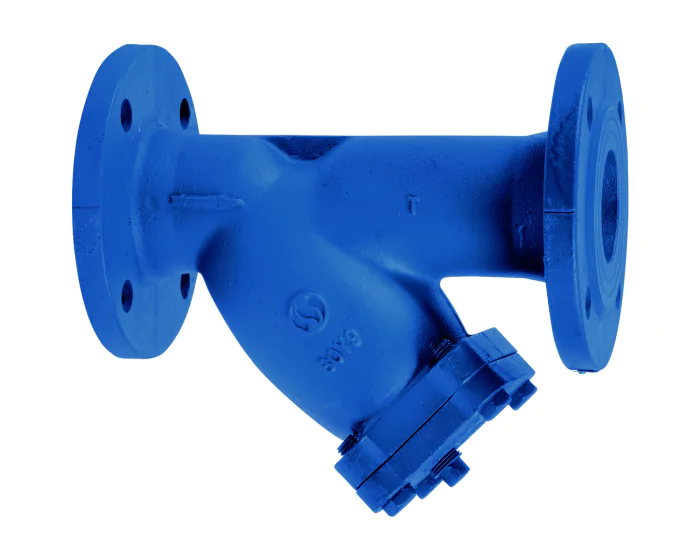

The 221 series Y-strainer is made of cast iron body with flanges RF PN10/16, stainless steel screen, draining cap, and blue epoxy paint. For sewage, water treatment and irrigation.
| Specification | Value |
|---|---|
| DN inches NPS | 1/2'' |
| Option certificate 3.1 | Yes |
| DN metric | 15/21 |
| Bonnet material | Cast iron EN GJL-250 |
| Mounting direction | Horizontal or vertical |
| Screen material | AISI 304 stainless steel |
| EN face-to-face standard | EN 558 series 1 |
| DIN face-to-face standard | DIN 3202-1 F1 |
| Face to face standard | EN 558 Series 1. DIN 3202-1 F1. NF 29354 |
| Flange type | RF |
| Application | Air conditioning / Heating |
| DN | DN15 - 1/2'' |
| Face to Face (mm) | 130.0 |
| Fluid | Cold water |
| Gasket | Graphite |
| Body material | Cast iron |
| PS (bar) | 16 |
| Connections | Flanged PN10/16 |
| RAL (Paint) | 5005 |
| Screen (mesh) | 10/10° |
| TS max (°C) | 120 |
| TS min (°C) | -10 |
| Warranty period | 2 years |
| Main product colour | Blue |
| Filter design | Y |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged PN10/16 Cast iron DN15 - 1/2'' Flanged PN10/16 | 221015 | S1011211 |
€19.04
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron DN20 - 3/4'' Flanged PN10/16 | 221020 | S1011212 |
€21.57
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron DN25 - 1'' Flanged PN10/16 | 221025 | S1011213 |
€23.00
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron DN32 - 1''1/4 Flanged PN10/16 | 221032 | S1011214 |
€24.63
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron DN40 - 1''1/2 Flanged PN10/16 | 221040 | S1011215 |
€32.79
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron DN50 - 2'' Flanged PN10/16 | 221050 | S1011216 |
€39.57
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron DN65 - 2''1/2 Flanged PN10/16 | 221065 | S1011217 |
€57.19
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron DN80 - 3'' Flanged PN10/16 | 221080 | S1011218 |
€66.10
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron DN100 - 4'' Flanged PN10/16 | 221100 | S1011219 |
€92.24
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron DN125 - 5'' Flanged PN10/16 | 221125 | S1011220 |
€140.29
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron DN150 - 6'' Flanged PN10/16 | 221150 | S1011221 |
€205.79
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron DN200 - 8'' Flanged PN16 | 221200 | S1011222 |
€372.96
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron DN200 - 8'' Flanged PN10 | 221201 | S1011223 |
€372.96
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron DN250 - 10'' Flanged PN16 | 221250 | S1011224 |
€705.03
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron DN250 - 10'' Flanged PN10 | 221251 | S1011225 |
€705.03
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron DN300 - 12'' Flanged PN16 | 221300 | S1011226 |
€1,013.84
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron DN300 - 12'' Flanged PN10 | 221301 | S1011227 |
€1,013.84
(excl. btw)
|
add to cart |
