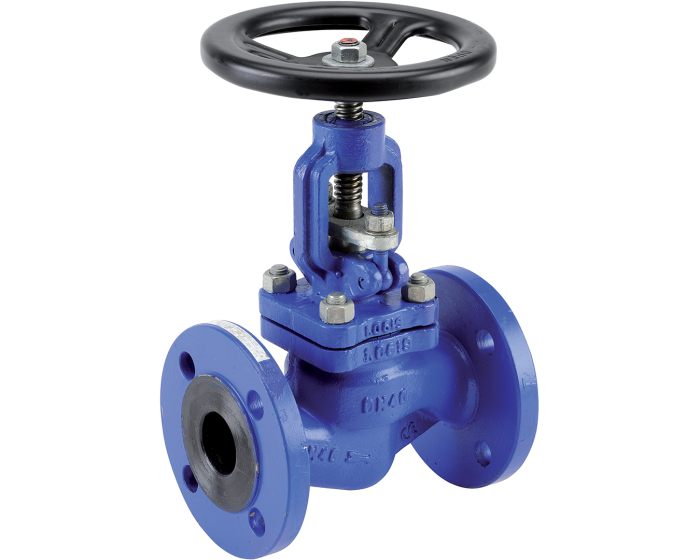

The series 471 globe valve is made of carbon steel A216WCB, flanges RF PN40, EN 558 series 1 face to face, stainless steel stem, globe and seat, bolted bonnet and gland pack. For non-corrosive and non-toxic fluids, steam, hydrocarbons.
| Specification | Value |
|---|---|
| DN inches NPS | 1/2'' |
| Option certificate 3.1 | Yes |
| DN metric | 15/21 |
| Bonnet material | Carbon steel ASTM A216 WCB |
| Type of seat | parallel |
| Construction standard | DIN 3840 |
| CE risk category | III Module H |
| Paint coating thickness (µm) | 40 |
| EN face-to-face standard | EN 558 Series 1 |
| DIN face-to-face standard | DIN 3202-1 F1 |
| Face to face standard | EN 558 series 1 |
| Brand | ICP VALVES |
| Flange type | RF |
| Tightness test standard | EN 12266-1. Rate A |
| Steam | Yes |
| Opening device | Handwheel |
| Application | Industry |
| Shaft/stem matérial | Stainless steel AISI 316 |
| Opening device/signal | Manual |
| DN | DN15 - 1/2'' |
| Face to Face (mm) | 130.0 |
| Sealing | Metal / Metal |
| Fluid | Oxygen / Argon / Nitrogen |
| Kv (m³/h) | 4.0 |
| Body material | Carbon steel A216 WCB (1.0619) |
| PS (bar) | 40 |
| Connections | Flanged PN10/40 |
| RAL (Paint) | 5002 |
| Seats | Stainless steel AISI 431 |
| TS max (°C) | 400 |
| TS min (°C) | -20 |
| Warranty period | 2 years |
| Type of stem | Rotating |
| CE | Yes |
| Plug material | Stainless steel AISI 420 |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged PN10/40 Carbon steel A216 WCB (1.0619) DN15 - 1/2'' | 471015 | S1010757 |
€92.96
(excl. btw)
|
add to cart |
| Flanged PN10/40 Carbon steel A216 WCB (1.0619) DN20 - 3/4'' | 471020 | S1010758 |
€104.40
(excl. btw)
|
add to cart |
| Flanged PN10/40 Carbon steel A216 WCB (1.0619) DN25 - 1'' | 471025 | S1010759 |
€107.07
(excl. btw)
|
add to cart |
| Flanged PN10/40 Carbon steel A216 WCB (1.0619) DN32 - 1''1/4 | 471032 | S1010760 |
€162.57
(excl. btw)
|
add to cart |
| Flanged PN10/40 Carbon steel A216 WCB (1.0619) DN40 - 1''1/2 | 471040 | S1010761 |
€188.34
(excl. btw)
|
add to cart |
| Flanged PN10/40 Carbon steel A216 WCB (1.0619) DN50 - 2'' | 471050 | S1010762 |
€216.39
(excl. btw)
|
add to cart |
| Flanged PN10/40 Carbon steel A216 WCB (1.0619) DN65 - 2''1/2 | 471065 | S1010763 |
€347.03
(excl. btw)
|
add to cart |
| Flanged PN10/40 Carbon steel A216 WCB (1.0619) DN80 - 3'' | 471080 | S1010764 |
€471.87
(excl. btw)
|
add to cart |
| Flanged PN10/40 Carbon steel A216 WCB (1.0619) DN100 - 4'' | 471100 | S1010765 |
€646.11
(excl. btw)
|
add to cart |
| Flanged PN10/40 Carbon steel A216 WCB (1.0619) DN125 - 5'' | 471125 | S1010766 |
€1,018.60
(excl. btw)
|
add to cart |
| Flanged PN10/40 Carbon steel A216 WCB (1.0619) DN150 - 6'' | 471150 | S1010767 |
€1,264.83
(excl. btw)
|
add to cart |
| Flanged PN10/40 Carbon steel A216 WCB (1.0619) DN200 - 8'' | 471200 | S1010768 |
€2,296.79
(excl. btw)
|
add to cart |
