Name: Air release valve 3145 - Ductile iron body - Full bore - 2''
SKU: 10071
Price: 863 EUR
Availability: InStock

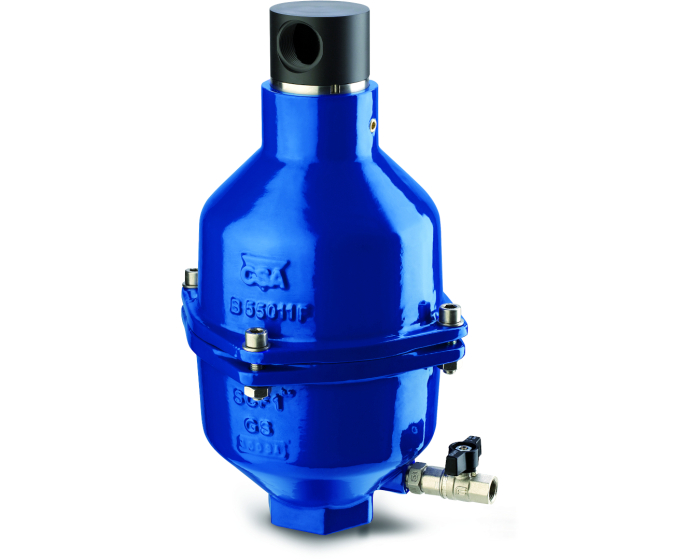

Air release valve 3145 - Ductile iron body - Full bore - 2''

863.00€

Discover our CSA range of suction pads. Body in GJS 450-10 epoxy coated RAL 5005, stainless steel seat, AISI 316 stainless steel air outlet system, stainless steel bolts, NBR gasket, polypropylene float.

In stock
Categories : CONTROLS

Documenten

Description
Technical Specifications

Specification	Value
EVAC Article Nr.	S106197
Connections	BSP F
Fluid	Cold water
In categories	Air release valves
Body material	Ductile iron
MAAT	50
PS (bar)	16
SKU	3145009
TS max (°C)	60
Warranty period	2 years
Application	Water supply and distribution network
Construction standard	EN 1074-4
DN inches NPS	2''
